MOBA Visual Guidance Systems – Advanced Laser Receivers for Precision Earthmoving

LASER RECEIVERS FOR ALL MACHINE TYPES

Built tough for harshest of job sites

CHALLENGES IN EARTHMOVING

High-precision levelling is very important for modern construction sites. An even, smooth surface is crucial for the quality of the overall project. For this reason, construction sites and their processes are getting more and more complex. The requirements on the worksite management are increasing and the tasks for machine operators are growing. In addition, construction projects, such as excavating a trench or complete earthworks and civil engineering projects must be implemented quickly and cost-effectively.

PRODUCTIVITY

The operator can only visually estimate the excavation depth. Additional control measurements are required after each step leading to increased re-work.

MACHINE WEAR

Additional re-work results in more operating hours for your machine which in turn increases machine wear and requires earlier replacement.

OPERATING COSTS

Inefficient, uncontrolled levelling requires more passes, increases working hours and fuel consumption.

MOBA Laserguide suitable for all small and medium sized machines

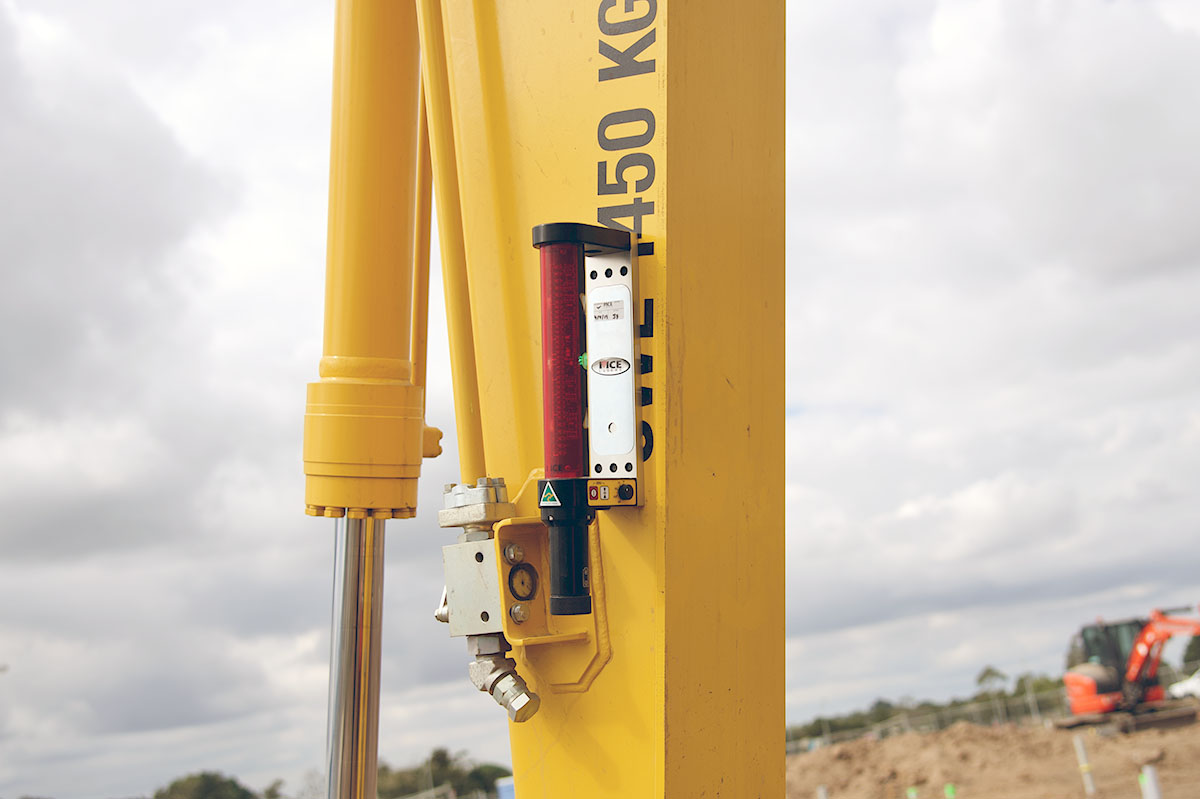

Laserguide Mini R.45.TC

EASY TO USE LASER RECEIVER WITH TILT COMPENSATION

The Laserguide R.45.TC continually monitors and adjusts for boom arm tilt so you don’t have to!

Visual receiver for all machine types
Integrated magnetic clamp
Tilt compensation
Fully waterproof
Economically priced
190 mm receiver length
Single D Cell battery operation

Tilt Compensation

The receiver uses internal position sensor to automatically compensate for height changes due to boom arm tilt, eliminating mistakes on the worksite.

Snap on / Snap off

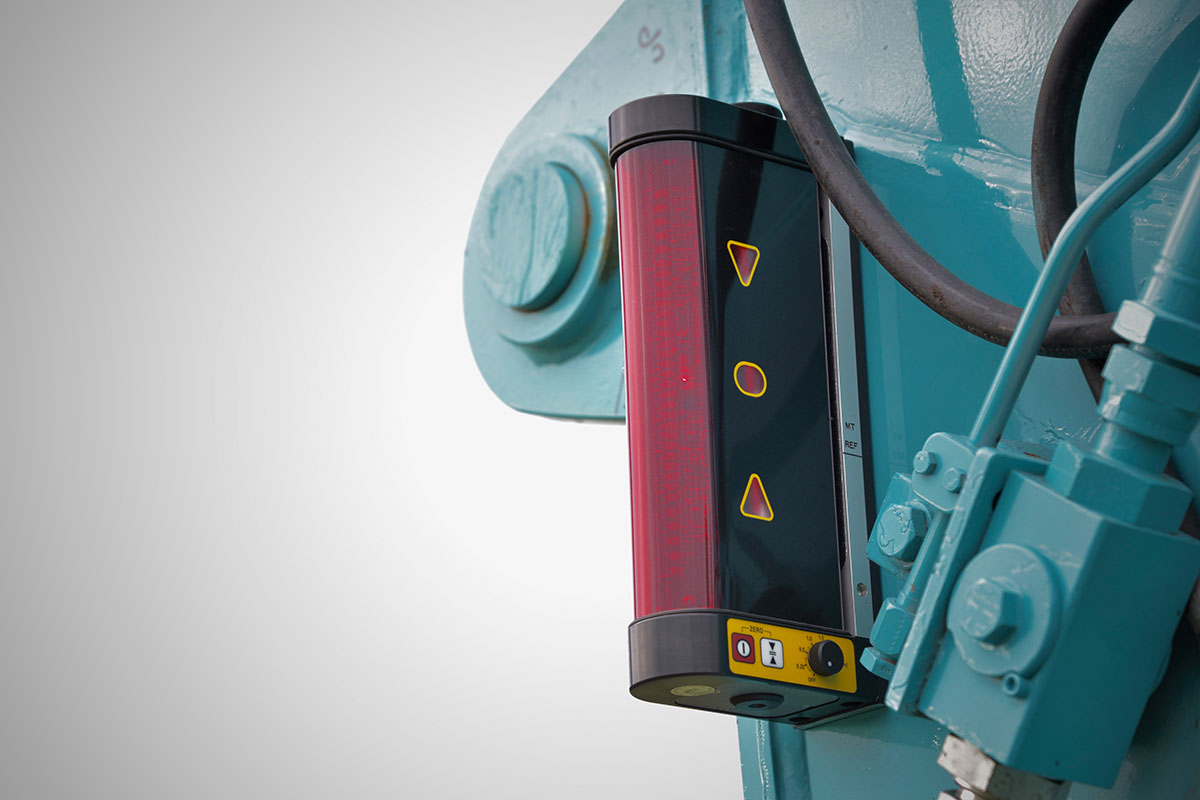

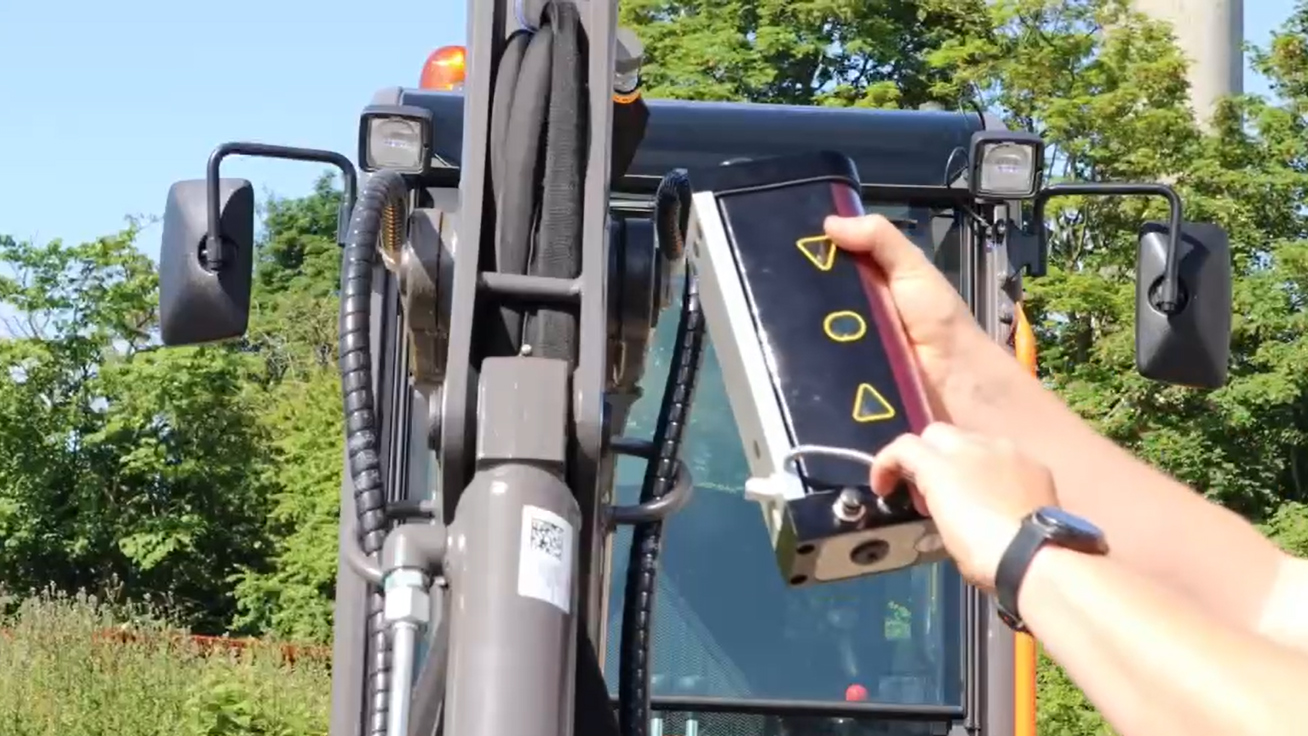

The Laserguide R.45.TC comes standard with industrial strength magnetic bracket. Installation is as simple as snapping on a fridge magnet and the unit is ready for work.

For harshest job sites

The Laserguide has an all-metal construction and is completely waterproof making it ready for the harshest job sites.

AUTOMATIC TILT COMPENSATION

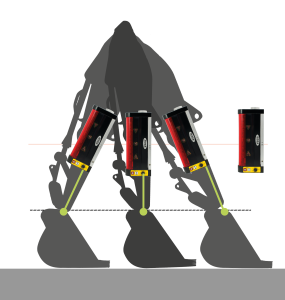

Using internal accelerometers, the receiver continually monitors the deviation of the boom arm from vertical and calculates and compensates the display ensuring it is always measuring the precise height of the bucket, irrespective of arm inclination.

Get the most out of your machines with MOBA systems

Do you have questions about our solutions? We are ready to help you!

Get in touch

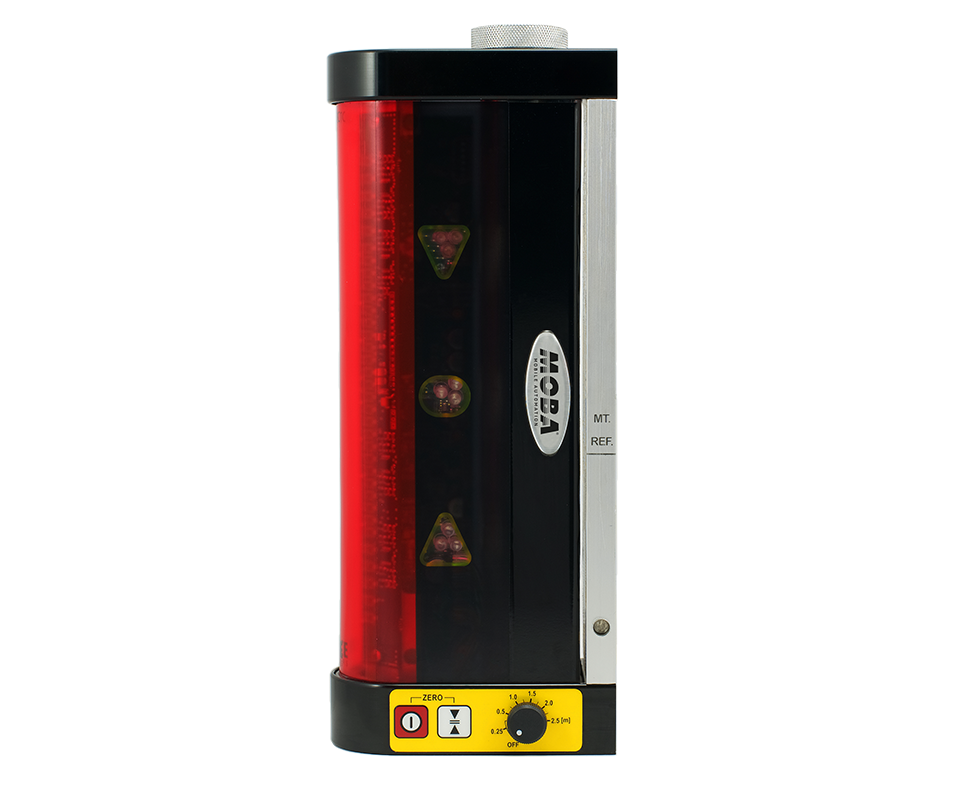

Laserguide Mini R.45.TC PRO

THE MOST ADVANCED VISUAL LASER RECEIVER

Laserguide R.45.TC PRO builds on ease of use and tilt compensation and adds BT connectivity for an ever wider range of uses.

Visual receiver for all machine types
Integrated magnetic clamp
Tilt compensation
Fully waterproof
BT / CAN connection
190 mm receiver length
Remote in-cabin display via BT / CAN
4x D Cell battery operation
Can be externally powered via 12 /24 VDC

BT Connectivity

In-built BT connectivity allows you to replicate receiver's display and adjust settings via a free Android app or on a dedicated display panel inside the machines' cabin.

Tilt Compensation

The receiver uses internal position sensor to automatically compensate for height changes due to boom arm tilt, eliminating mistakes on the worksite.

Snap on / Snap off

The Laserguide R.45.TC comes standard with industrial strength magnetic bracket. Installation is as simple as snapping on a fridge magnet and the unit is ready for work.

BT Connectivity

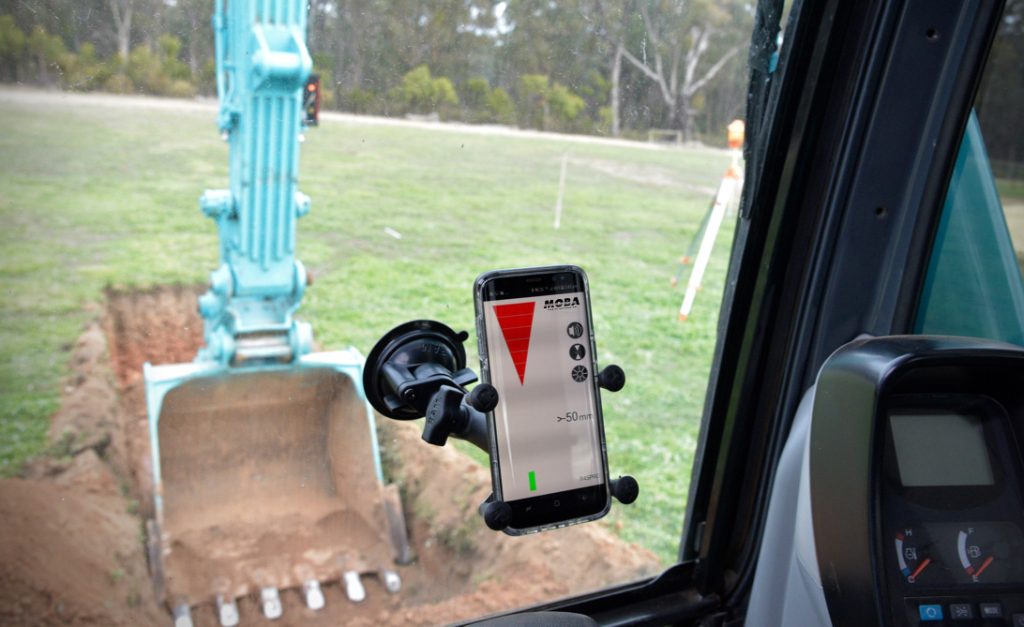

The R.45.TC PRO has inbuilt BT connectivity which allows the user to connect the receiver to their Android phone using the free MOBA app. The user can then adjust receiver display brightness, change centre band accuracy and replicate the receivers LED display in the machine’s cabin.
