MOBA Drilling Solutions

Save time-consuming manual measurements and reworks

Challenges regarding blast hole drillings

Machine alignment

Aligning the machine is an additional difficulty in the slope alignment of the drilling arm.

Exact depth

It’s nearly impossible to drill all holes to the same depth without any measuring system.

Safety

If the boreholes are drilled in the wrong position, explosions may result in rockfall and a dirty break-off edge.

PARALLEL DRILL HOLES

It’s difficult to drill parallel holes, only with marks on the ground.

High operation costs

The manual measuring causes high operating expenses and is also a huge time factor.

Drill alignment

It’s difficult to drill all the holes in the same angle.

MOBA Solutions for drill rig or Ram

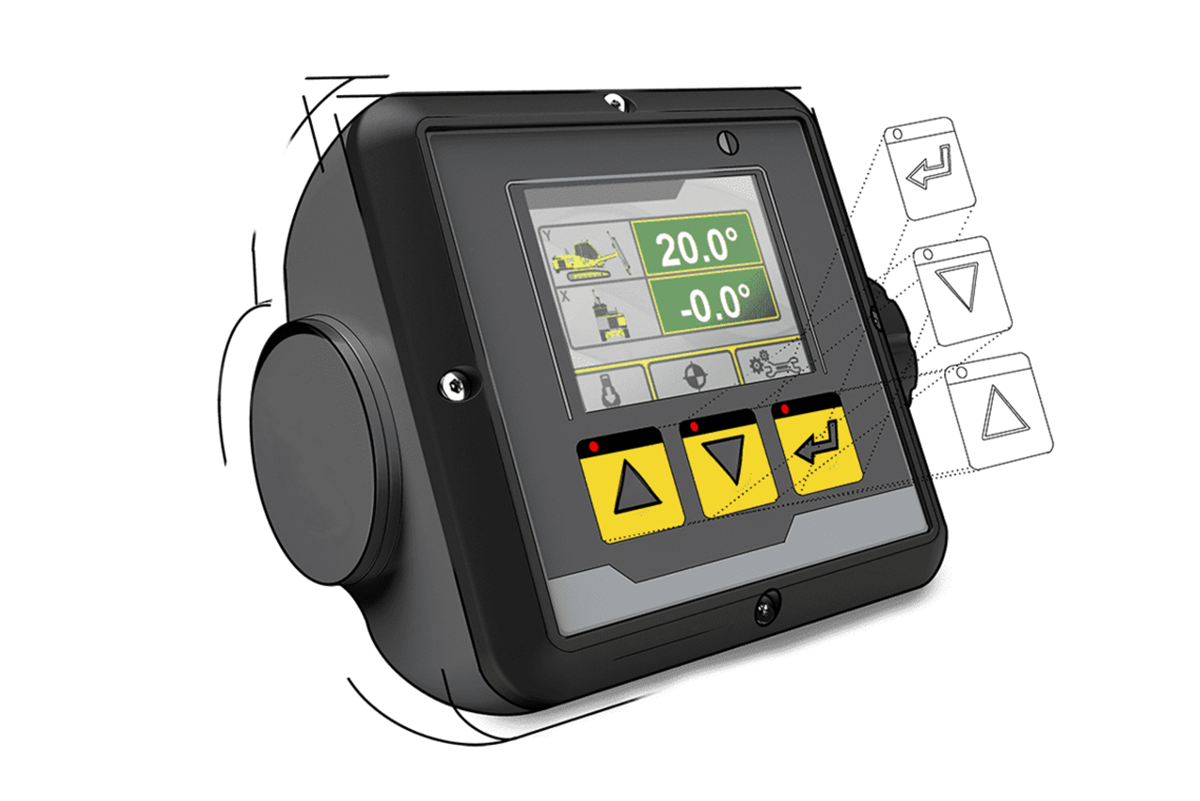

MDS-1000

Precision Guidance for Auger and Blast Hole Drilling

The MDS‑1000 is a high-precision drilling guidance system engineered to improve accuracy, efficiency, and safety in auger, blast-hole, and pile-driving applications. Available in two configurations — Level and Drill — it offers tailored functionality to meet a wide range of site requirements.



In Level mode, the MDS‑1000 is typically used for auger applications, providing reliable X and Y indication to the operator for consistent alignment and control.

In Drill mode, it excels in blast-hole and pile drilling, using advanced dual-axis sensors and an auto-stop feature to ensure accurate angle and depth, while minimizing manual errors and increasing safety on site.



The intuitive interface delivers real-time feedback on key metrics such as drilling depth and rod count — enabling quick, informed adjustments during operation. With a modular and upgradeable design, the system ensures long-term scalability and adaptability.



Built for the harsh demands of mining, quarrying, and construction, the MDS‑1000 helps operators drill with greater precision, improved productivity, and lower overall operating costs.

EASY TO OPERATE

Easy to use ergonomic MOBA wheel which can be easily operated even with gloves on. You will always have clear display of drilling depth, feed rate, and actual vs. target inclination.

Upgradeable

Take advantage of cost- and time-efficient upgrades with a wide range of additional components, thanks to its exceptional modular design.

Easy to install

Only three components required: inclination sensor, depth sensor, and touch display.

Get the most out of your machines with MOBA systems

Do you have questions about our solutions? We are ready to help you!

Get in touch

MDS-1100

Drilling system for precise blast hole borings

The MDS-1100 drilling system is the ideal solution for precise deep drilling, especially in quarries and solar fields. Quick and easy to install, the system combines advanced technologies with a user-friendly design to make drilling processes more efficient and safer.

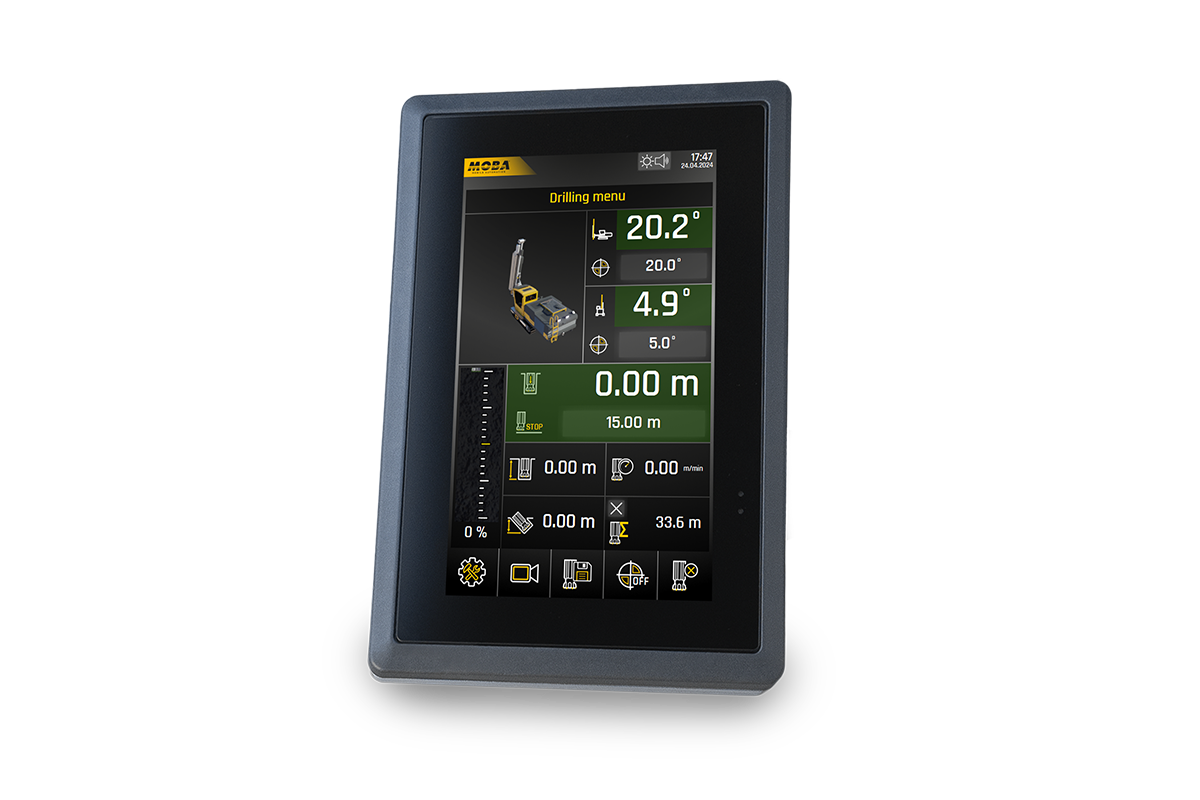

Precise depth measurement in real time, automatic drill stop and safety features such as person recognition make drilling operations simpler and safer. The system’s new, intuitive color display, GDT-070, also provides clear visualization and simplified operation.

Real time drill data

Clear display of drilling depth, feed rate, and actual vs. target inclination. Includes bore meter counter.

Upgradeable

Profit from cost- and time-efficient upgrades from a wide range of additional components thanks to exceptional modularity.

EASY TO INSTALL

Only three components required: inclination sensor, depth sensor, and touch display.

Get the most out of your machines with MOBA systems

Do you have questions about our solutions? We are ready to help you!

Get in touch

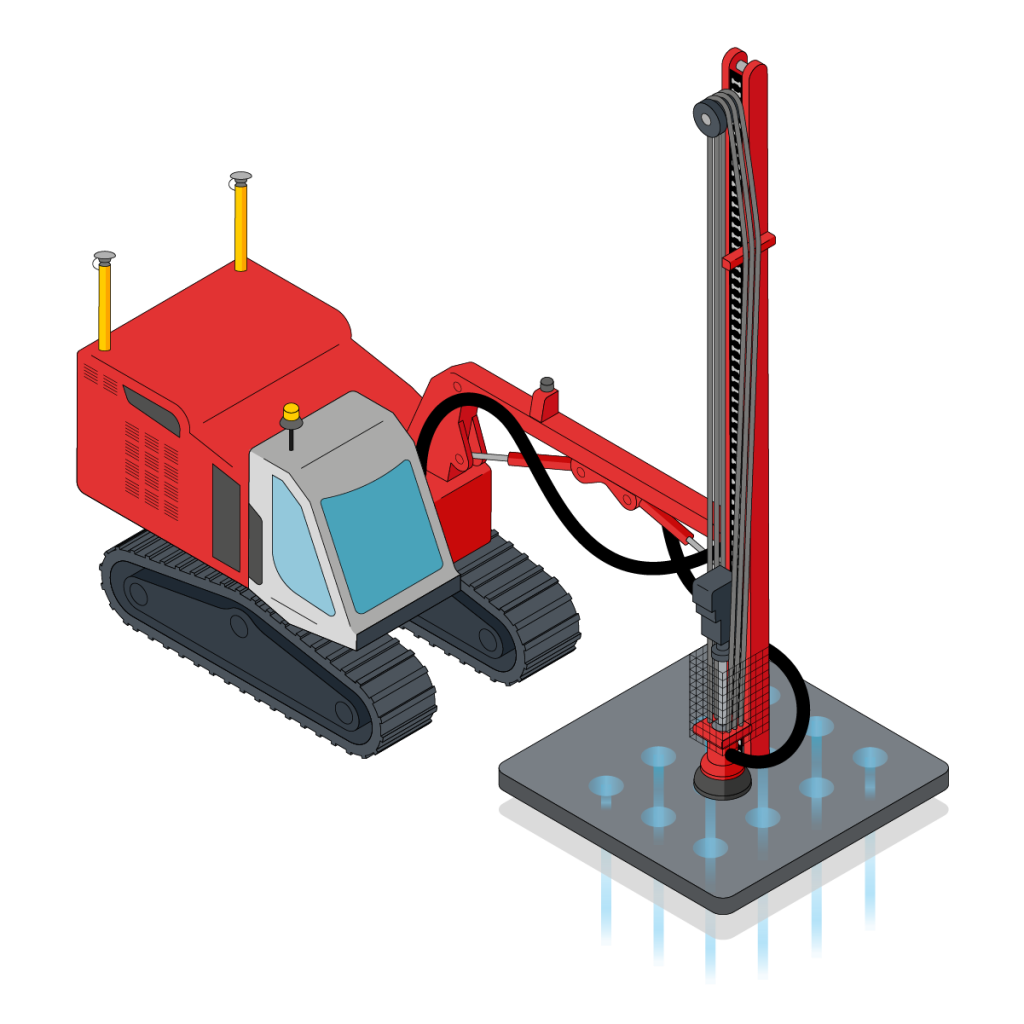

Precisely Positioned Boreholes

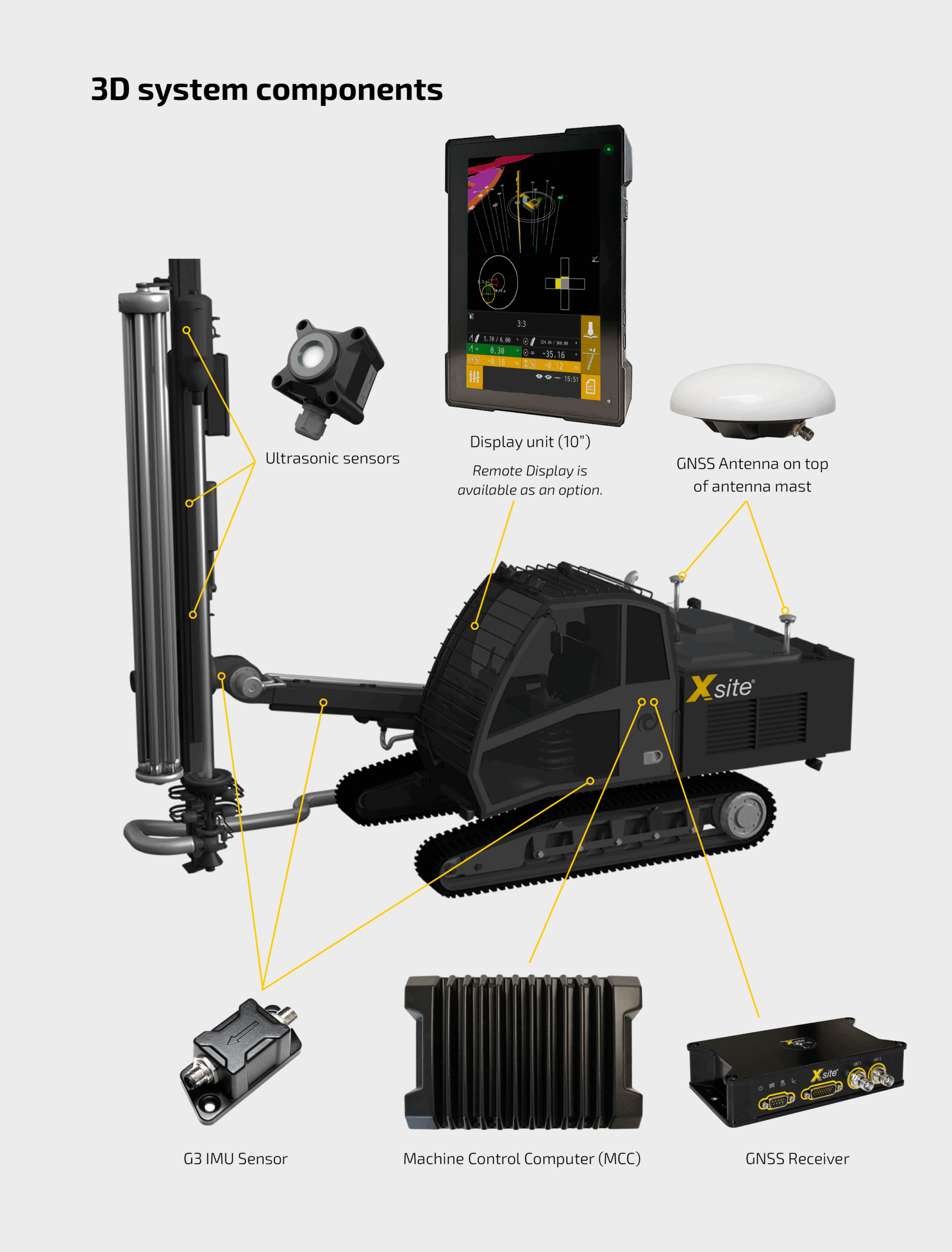

MDS-2000

High-end drilling system to improve mining operations

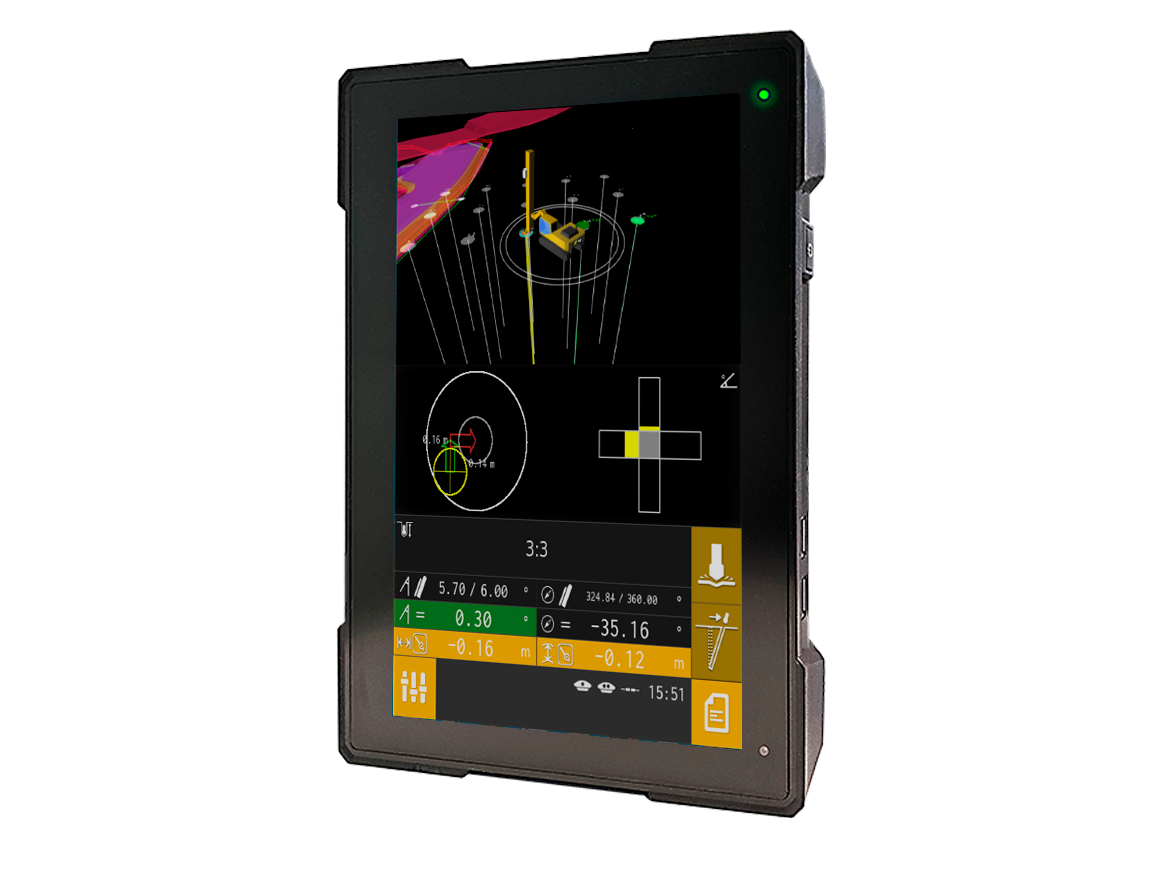

The graphic display GD-320 takes your drilling machine to the next level. Thanks to full integration into your machine and cloud connection, you benefit not only from the transfer of all drilling-relevant data, but also from values for machine and motor data. This allows you to plan machine maintenance in advance and actively prevent breakdowns. By determining the position of the machine, you never lose sight of it and always have an overview of the productivity of your drilling machine fleet. How to increase your ROI.

LIVE UPLOAD

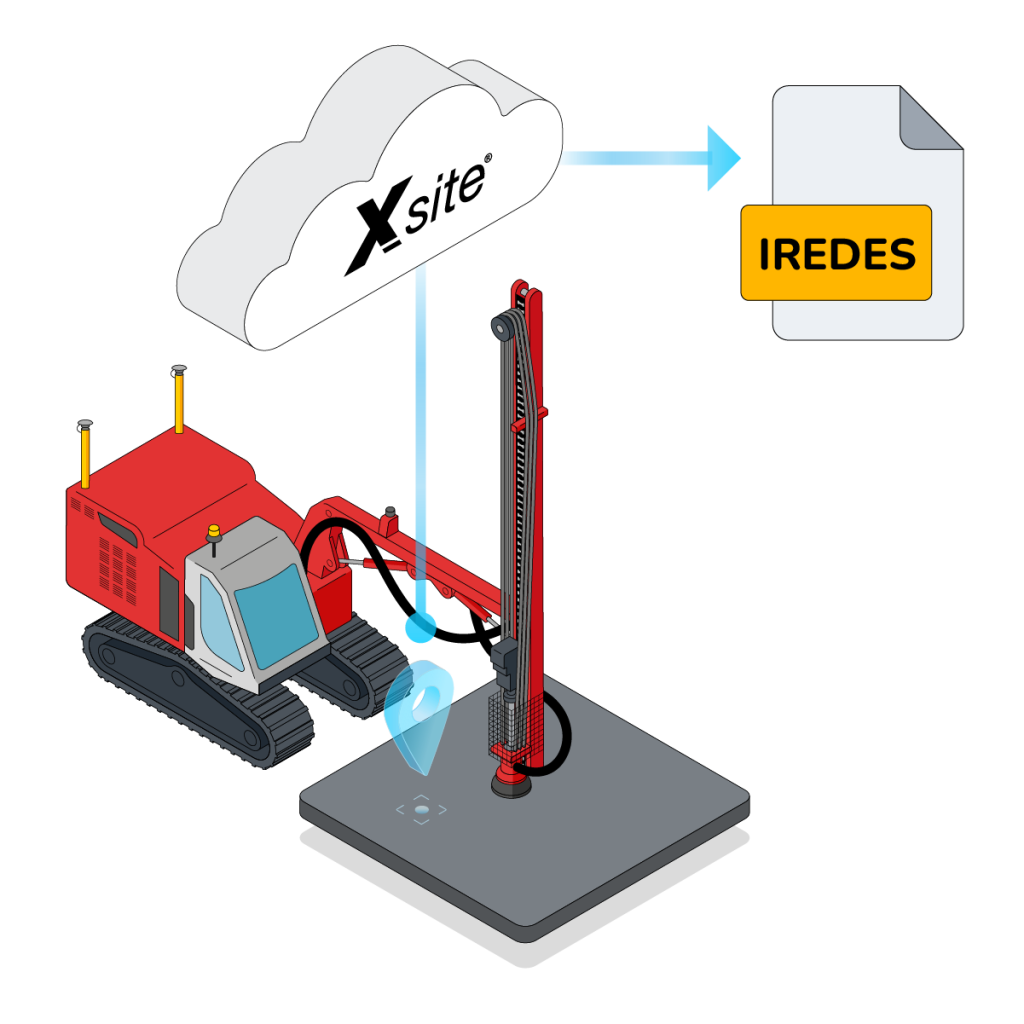

Thanks to the telemetry module with seamless cloud integration, you can send your borehole data as well as engine data such as oil pressure or acceleration directly from the machine to the office.

Open Data Formats

Import 3D models from Quarry X into the system for even more precise work. The operator only has to position the machine as shown, adjust the orientation of the mast and start drilling.

Positioning

Piler and Compass extension allow exact positioning of the machine in the terrain.
